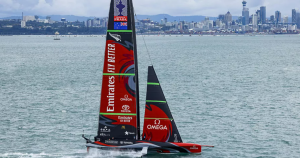

With strict limits placed on physical testing by the America’s Cup organizers, Emirates Team New Zealand relies on engineering simulation to test a range of design concepts rapidly, reliably, and affordably. Emirates Team New Zealand engineers run comprehensive simulations of fluid dynamics and composite structures using Ansys Fluent and Ansys Mechanical that replicate its yachts’ aerodynamics above the water and hydrodynamics below the water. Through countless simulations carried out with Ansys, the team most recently optimized its yacht for the 2021 America’s Cup, Te Rehutai, leading to a decisive victory. Today Emirates Team New Zealand has added the flexible computing capacity of Ansys Gateway powered by AWS, to accelerate its results and enable engineers to tackle even more complex problems in the run-up to the next America’s Cup race. Emirates Team New Zealand used Amazon EC2 HPC6a instances powered by 3rd gen AMD EPYCTM processors.

Challenges

To optimize its America’s Cup yacht designs, Emirates Team New Zealand engineers combine a proprietary velocity prediction program with Ansys models and high-performance computing (HPC) resources to create a dynamic simulation of the yacht as it moves across the racecourse, under diverse wind and weather conditions. This helps the team not only optimize the physical profile of the hull, sails, and other components, but also train sailors to trim the sails in the most aerodynamic manner, creating optimized sail shapes as the race progresses. While this digital prototype minimizes expensive physical wind tunnel and tow tank testing, it is computationally large; some of the resulting meshes can exceed 50 million cells. Emirates Team New Zealand engineers were maxing out their in-house HPC cluster, which limited the numbers of simulations they could run and the number of dynamic racing scenarios they could consider. Because the team is focused on fast, continuous innovation that results in winning performance, Emirates Team New Zealand engineers needed a way to scale up their HPC capabilities flexibly and affordably during critical periods so they could keep the wind in their sails.

Engineering Solution

Powered by Amazon Web Services, Ansys Gateway was the perfect solution for Emirates Team New Zealand’s changing computing needs. The team’s engineers can choose to submit a given simulation job to the in-house HPC cluster or to the cloud via an easy-to-use Gateway interface.

As the internal cluster reaches 100% capacity, Emirates Team New Zealand can quickly shift to the AWS cloud thanks to Ansys Gateway powered by AWS, instead of buying new equipment and making a long-term investment in additional capacity that’s only needed during peak periods. While its internal HPC cluster provides Emirates Team New Zealand with a good baseline computing resource, Ansys and AWS provide instant and elastic capacity when engineers are exploring computationally intense problems such as turbulence and cavitation or running multiple simulations simultaneously.

Benefits

The Emirates Team New Zealand is able to scale up on-demand to many times the simulation throughput when using Ansys Gateway powered by AWS, when compared to their internal cluster. Emirates Team New Zealand engineers can specify a cloud-based cluster and always choose the most advanced hardware, effectively upgrading their hardware every day instead of making an investment in new hardware every four years. For an organization that’s defined by both speed and innovation, one of the greatest benefits of Ansys Gateway powered by AWS, is that Emirates Team New Zealand engineers can work in a limitless environment, where computing capacity is never an obstacle to their creativity. They can investigate greater numbers of very complex problems. They can minimize their risk of overlooking any single aspect of yacht performance that could ultimately be the difference between winning and losing, because they have the luxury of running as many simulations as they want. They don’t need to shortchange investigation or sacrifice analytic rigor as they race to the next design milestone.

Emirates Team New Zealand has always been recognized for its sophisticated simulations and its engineering leadership. Now, backed by the speed and power of Ansys Gateway powered by AWS, this team is truly in a class of its own.
